Informational Guidance vs. Workshop Diagnostics

First, a transparent note of clarity: this guide explains the concepts and engineering principles used in professional EV workshops. Reading educational guides equips you with smart questions, but it does not replace a physical scan performed with dedicated high-voltage diagnostic equipment by trained European automotive technicians.

The Five-Phase Diagnostic Workflow

Whether performed at a franchised workshop in Munich or an independent testing station in Rotterdam, a thorough battery assessment follows a structured five-step path:

01

Identify

Technicians read the unique Vehicle Identification Number (VIN) directly from the electronic control units, not just the windscreen sticker. They match the pack's hardware part number, chemistry variant (e.g., NMC, LFP, NCA), and installed BMS software version against European technical service bulletins.

02

Connect

A diagnostic interface interfaces with the vehicle's High-Speed CAN or Ethernet diagnostic gateway. Communication protocols query the Battery Management Unit (BMU) and Cell Monitoring Controllers (CMCs) distributed throughout the pack.

03

Measure

High-frequency data streaming captures real-time operating metrics across all cell bricks:

  • Cell Voltages: Instantaneous voltage across 96 to 192 individual cell blocks in series.
  • Internal Resistance: Dynamic voltage reaction during simulated load bursts or regenerative braking.
  • Thermal Probes: Temperature readings from multiple thermistors embedded between modules.
  • Lifetime Telematics: Lifetime kWh charged (AC vs. DC breakdown) and lifetime energy discharged.
04

Interpret

Raw data must be filtered against battery physics. A 15 mV difference between cell #14 and cell #52 at 50% SoC is standard. That same 15 mV difference at 8% SoC under a 50 kW acceleration request might point toward severe degradation in cell group #14. The technician examines historical DTC fault codes (like high-voltage isolation alerts or contactor weld counters).

05

Report

The findings are compiled into an unalterable inspection record featuring capacity estimates, cell delta graphs, safety interlock statuses, and cooling performance metrics.

Cell Balance: Why the Delta Matters Most

An EV pack is only as strong as its weakest cell block. If 95 cells have 92% remaining capacity, but one weak cell has degraded to 79%, the vehicle's BMS will stop discharging as soon as that single weak cell hits the minimum safe voltage cutoff.

During a quality diagnostic assessment, the tester monitors the Cell Voltage Delta (the difference between the highest and lowest cell voltage):

  • Healthy Balanced Pack: Delta typically sits between 5 mV and 15 mV when resting at 50% charge.
  • Tired or Imbalanced Pack: Delta widens beyond 35 mV to 60 mV during resting, and widens dramatically under heavy load.
  • Defective Cell / Module: Delta spiking past 100 mV under moderate draw, often triggering dashboard warnings or powertrain power limitations.

Basic Readouts vs. Deeper Dynamic Diagnostics

A quick handheld scanner plugged in for thirty seconds while the car is idling in "Park" only reads static memory values stored by the vehicle computer. It cannot stress-test cell impedance.

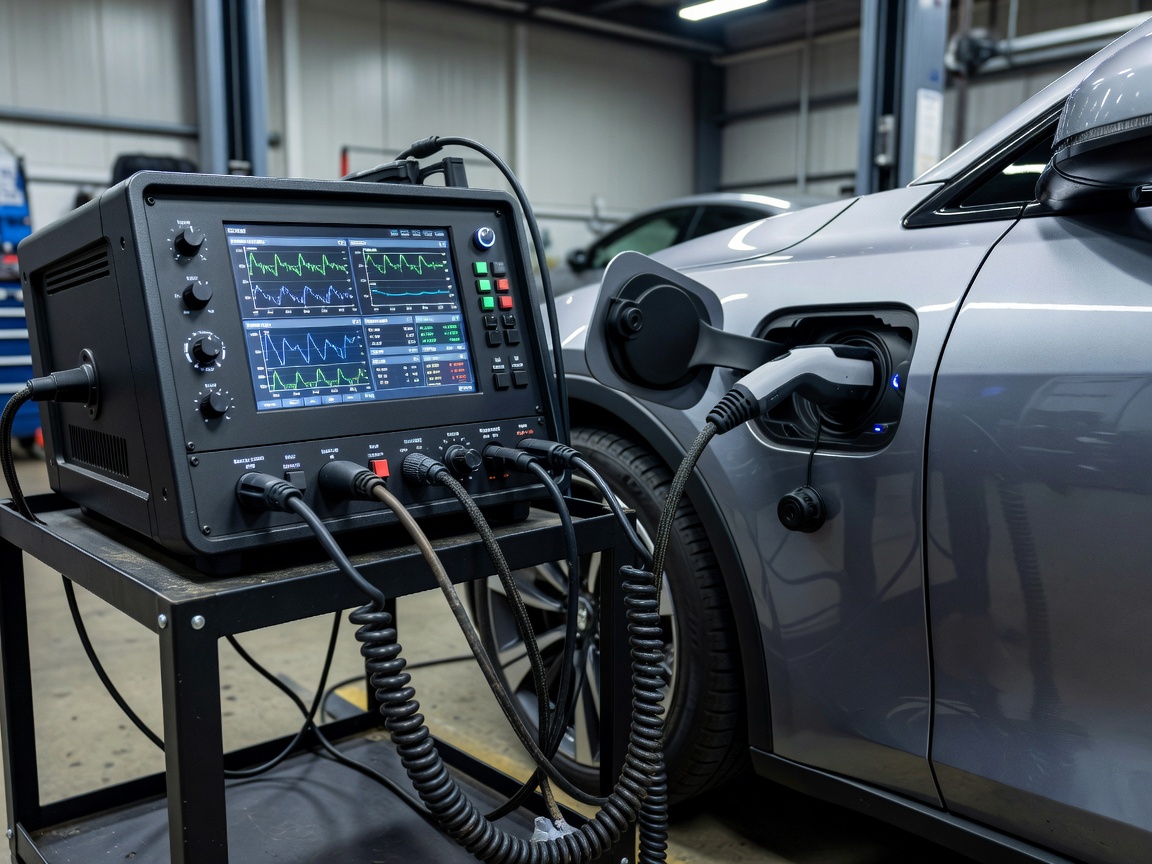

A deeper dynamic test involves recording cell telemetry during a short driving sequence (applying real-world load) or observing the pack through an active AC/DC charge session. This reveals how heat distributes across cooling channels and how smoothly the cells accept current without thermal bottlenecks.
